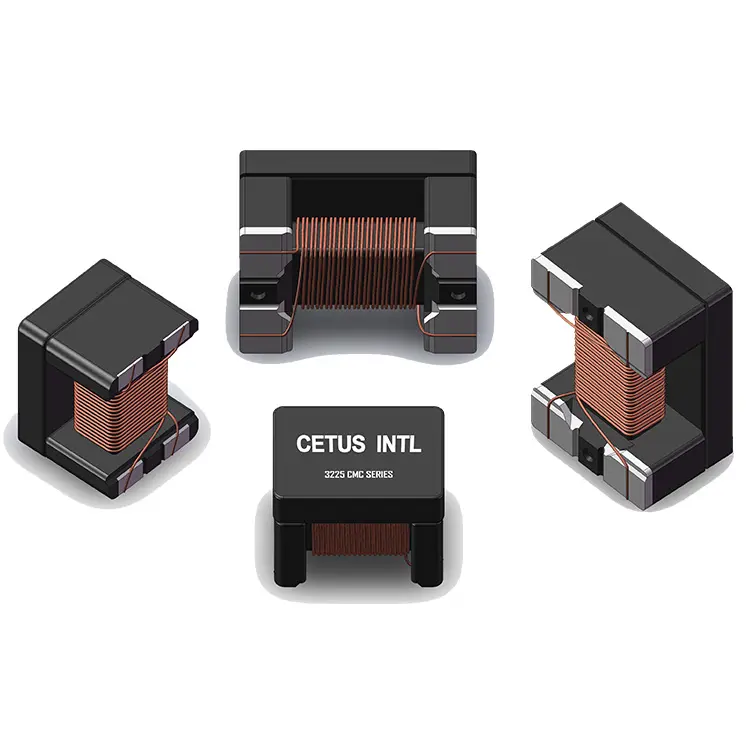

Small size Chip Choke Product
Small size Chip Choke Product Small size Chip Choke Product Small size Chip Choke Product
  • Small size Chip Choke Product

Small size Chip Choke Product

Item No.: CACA4532110U0
This Chip Choke Product Combine Small Size With The Same Excellent Suppression Performance.
  • Rated Current:
    250
  • RDC:
    0.6
  • Temperature:
    – 40°C to +125°C
  • Isolation Resistance:
    10
Add to Inquiry
Download
Description Application
Description
AUTOMOTIVE
IVN(IN-VEHICLE NETWORK)-CAN/CAN-FD/ETHERNET USE CHIP CHOKES
Features And Benefits
• Meets IEEE 802.3 Single Twisted Pair Standards
• Meets AEC-Q200 Requirement
• PPAP Documentation Support
• Tested With Leading PHY Partners
• Operating Temperature: – 40°C to +125°C
• 100Base-T1, 1000Base-T1 & PoDL Products
• IATF16949 Capable

AEC-Q200&IATF16949&RoHS COMPLIANT & REACH COMPLIANT

CAN/CAN-FD 4532 Electrical Specifications @ 25°C

Part Number

Common Mode Impedance (10MHZ)

Inductance (μH) +50/–30%

RDC (Ω)Max

Leakage Inductance (nH) Typ

Isolation Resistance (MΩ) Min

Rated Current (mA) Max

Rated Voltage (V) Max

(Ω)Min

(Ω)Typ

CACA4532110U0

300

600

11

0.6

50

10

250

50

CACA4532220U0

500

1200

22

1

80

10

200

50

CACA4532510U0

1000

2800

51

1

150

10

200

50

CACA4532101U0

2000

5800

100

2

200

10

150

50

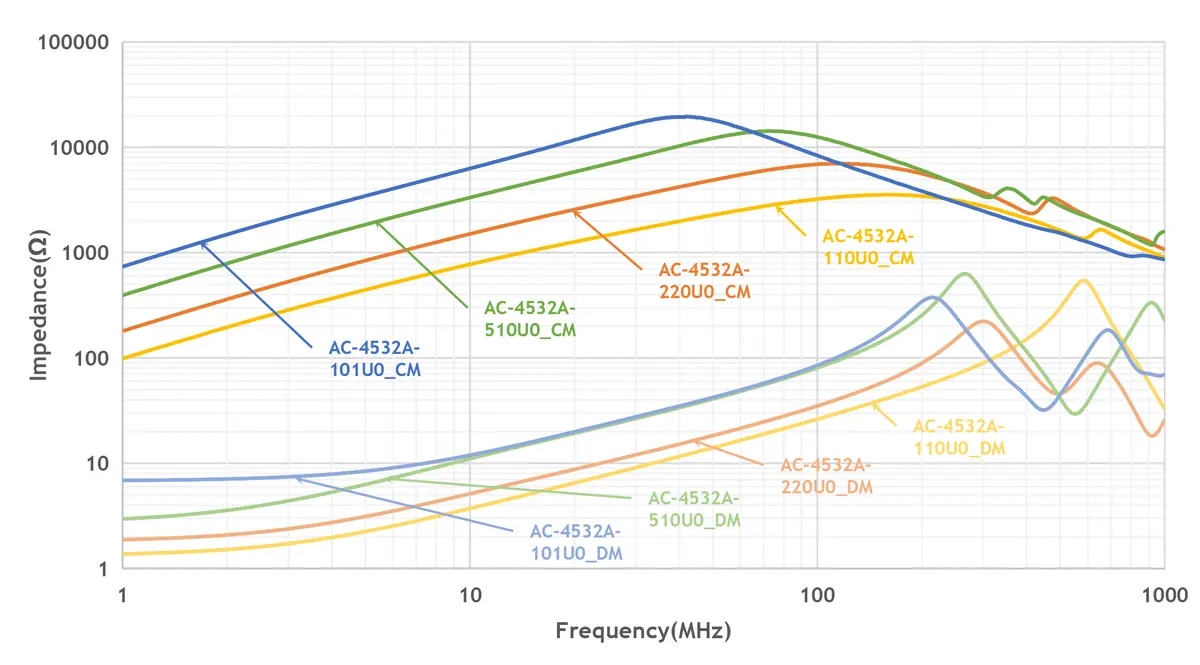

Impedance VS. Frequency
Small size Chip Choke Product Impedance VS. Frequency

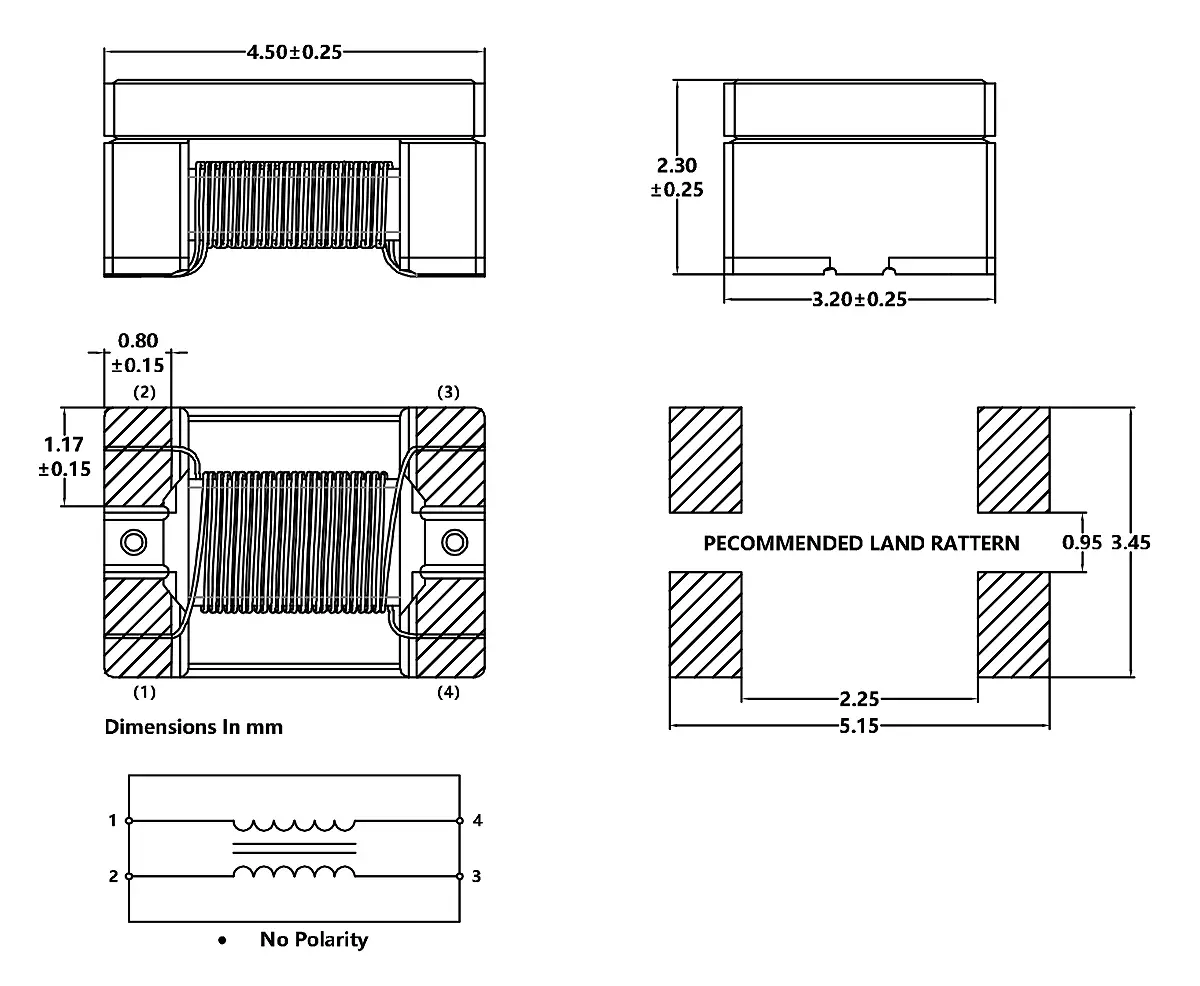

Mechanical & Schematics
Small size Chip Choke Product Mechanical & Schematics
Application
Electronics Inside The Car Communicate With Each Other Over In-Vehicle-Network. Reliable Data Transfer At Automotive Harsh Environment Like Noise And Temperature. CETUS Has Expanded Its Chip Choke Product Range For Automotive CAN/CAN-FD/A2B And 100BASE-T1/1000BASE-T1 Ethernet Applications. They Combine Small Size With The Same Excellent Suppression Performance Needed For Automotive Ethernet And Transportation Solutions Using CAN, CAN-FD, A2B And IsoSPI. JWD’s Parts Are Designed To Operate From -40°C Up To +125°C, Have High Reliability, High Volume Manufac-Turing, Long Term Manufacturing Support, And Meet AEC-Q200 Requirements.
Application
 • 100Base-T1 Automotive Ethernet
 • 1000Base-T1 Automotive Ethernet
 • CAN, CAN-FD
 • Flex Ray And IsoSPI
 • A2B
