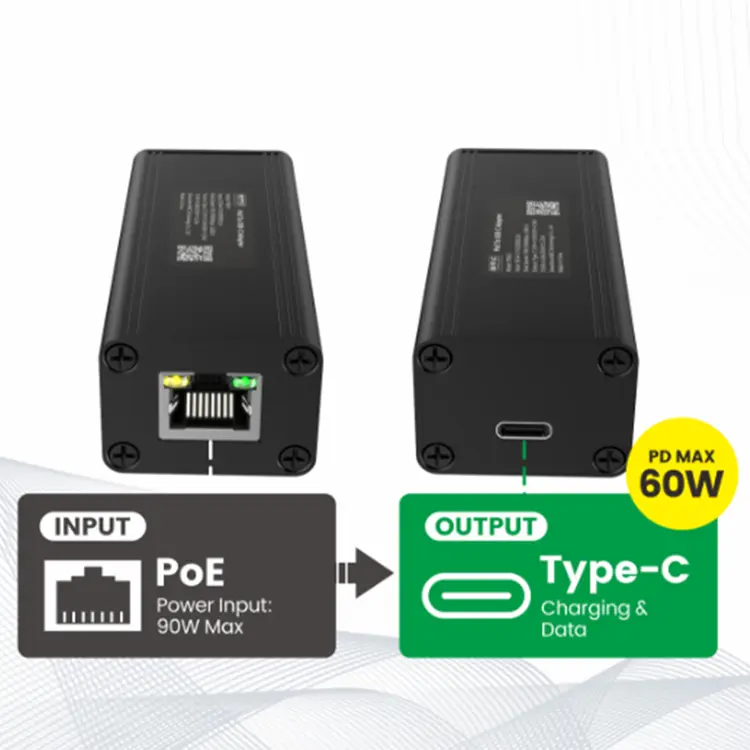

PoE Network Card with USB-C Output

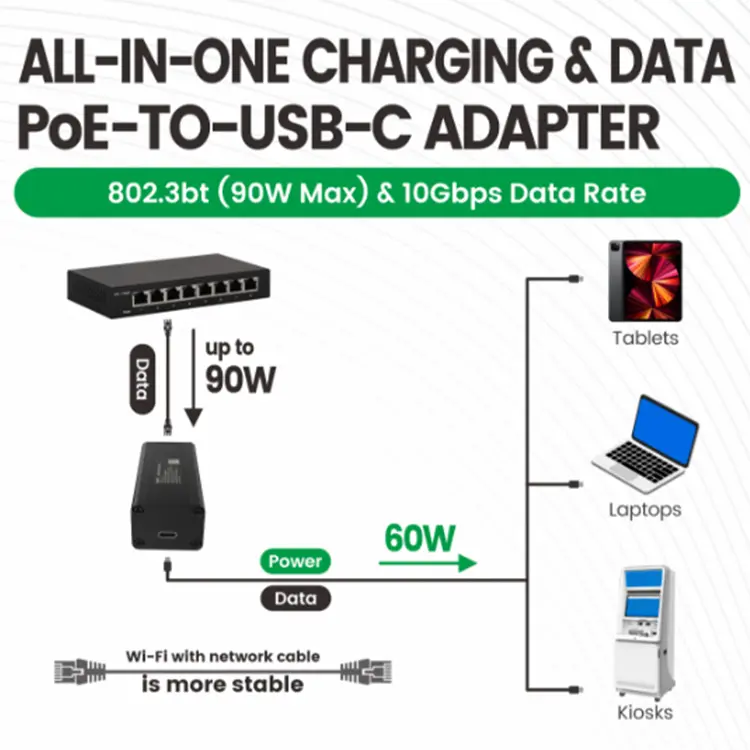

This PoE Network Card is the ultimate solution for powering and networking devices with a USB-C port, such as tablets and digital displays. It receives both power and data through a single standard Ethernet cable from a PoE switch or injector, then delivers it to your device via USB-C.
This sleek plug-and-play card eliminates power adapter clutter and simplifies installation. With clear status LEDs for real-time monitoring, it's the reliable, cost-effective choice for digital signage, kiosks, and office setups.

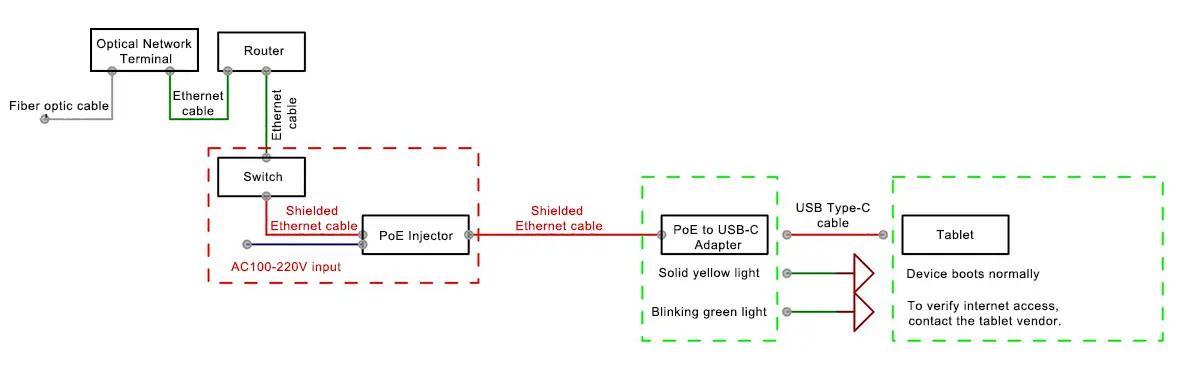

Wiring Procedure

1.Connect the POE power adapter to the POE network card using a shielded Ethernet cable.
2.Connect the POE network card to the Amazon tablet via the Type-C cable.
3.Wait for approximately 30 seconds until the POE network card's indicator shows a solid yellow light with a flashing green light.
4.The Amazon tablet will boot up normally and reach the home screen. (To confirm if the internet is being accessed via USB tethering, please consult the tablet vendor.)

If you're connecting to a standard Android or Apple phone or tablet, the following image will appear:

POE Fast Charge icon


POE Non-Fast Charge icon

USB Networking ico

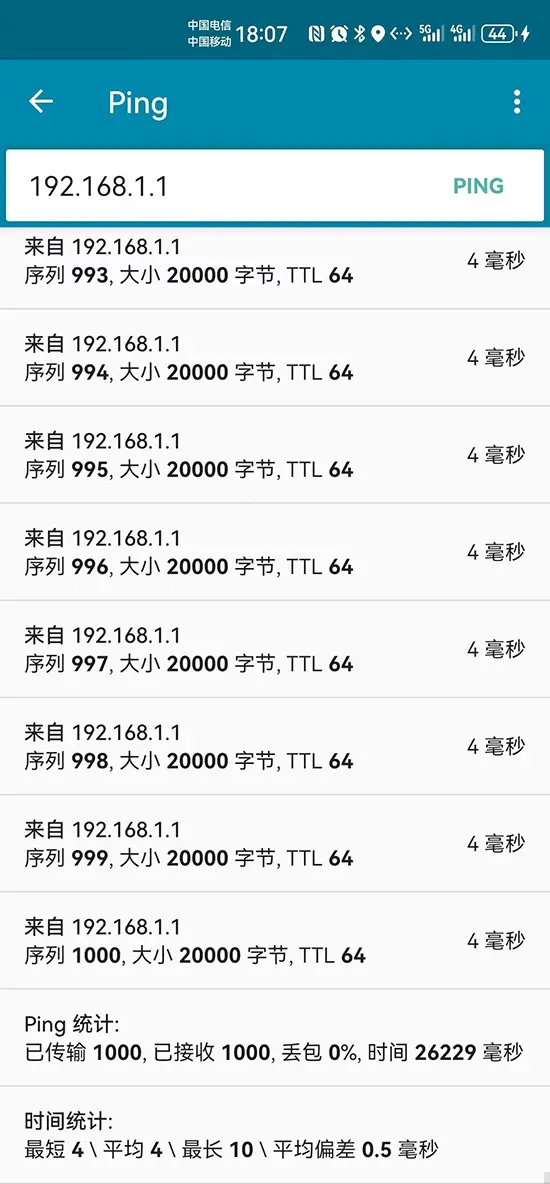

Android devices can download the pingtools Pro software to perform ping packet tests.

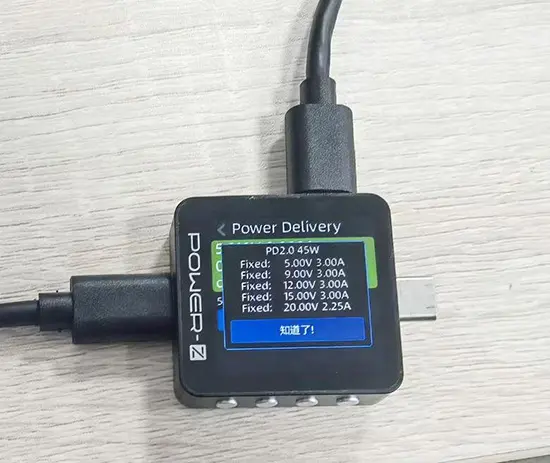

To test the voltage and current output supported by the POE network card, you need POWER-Z's KM003C. Connect the TYEPC interface on the left to the POE network card and the TYPEC interface on the top to the power supply.
If you want to perform a load test, use KM003C to induce different output voltages, connect the TYPEC interface on the right to the electronic load, and then perform the load test.
