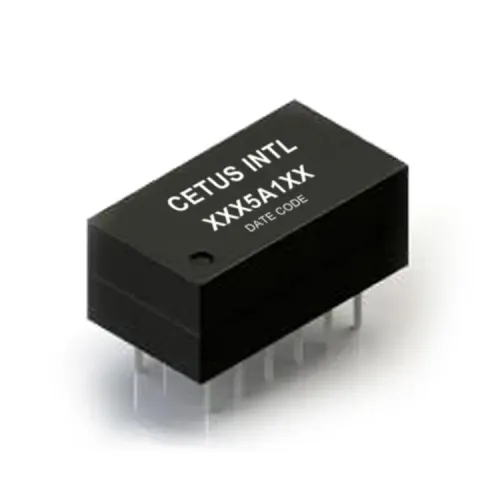

One Port 16 PINs LAN XFMR For Communication Equipment

Item No.: PZZ5A1CC
WE are  a professional Lan Transformer manufacturer, you can rest assured to buy Lan Transformer from our factory . The PN PZZ5A1CC is One Port 16 PINs LAN XFMR For Communication Equipment and XFMR Electrical.
  • Application-Lan:
    X'FMR/CMC
  • Ports:
    Single
  • Package:
    DIP
  • PIN No.:
    12 Pin
  • Speed:
    10/100 BASE-T
  • PoE Rating:
    PoE 15W
  • Temperature (℃):
    0-70℃
Add to Inquiry
Description Application
Description

XXX5A1XX Series

10/100 Base-TX Single Port Magnetic Modules DIP

◆Compliant with IEEE 802.3 standard for 10/100Base-TX.

◆Storage temperature range: -40℃ to +85℃.

◆RoHS compliant.
◆WE are  a professional Lan Transformer manufacturer, you can rest assured to buy Lan Transformer from our factory . The PN PZZ5A1CC is One Port 16 PINs LAN XFMR For Communication Equipment and XFMR Electrical.



CETUS PN

Application-Lan

Number Of Ports

Package

PIN No.

Speed

Package SIZE(mm)

PZZ5A1CC

X'FMR/CMC

Single

DIP

12

10/100 BASE-T

14*7.7*6



Electrical Specifications @ 25°C

Part Number

OCL(uH)

Insertion Loss
(dB)

Return Loss
(dB)

Cross talk
(dB)

CMRR
(dB )

Isolation Hipot(V)

PoE Rating

Operating Temperature
(°C)

Min

Max

Min

Min

Min

Min

100kHz,0.1V 8mA DC BIAS

1-100MHz

1-30MHz

30-60MHz

60-80MHz

1-100MHz

1-100MHz

1mA,60s

LZZ5A1CB

350

-1.1

-18

-14.4

-12

-30

-30

1500

NON-PoE

0 to 70

LZ15A1CB

350

-1.1

-18

-14.4

-12

-30

-30

1500

NON-PoE

-40 to 85

LZZ5A1CA

350

-1.1

-18

-14.4

-12

-30

-30

1500

NON-PoE

0 to 70

PZZ5A1CC

350

-1.1

-18

-14.4

-12

-30

-30

1500

PoE-15W

0 to 70





Mechanical


XXX5A1XX Series  10/100 Base-TX Single Port Magnetic Modules DIP


Schematics-PZZ5A1CC


Application
Market Application

5 major market categories Network Communication, Consumer electronics, Transportation, Industry, Medical.
    1. ▶NETWORK COMMUNICATION:Switch, Router, STB, Gatewa1 and Base Stations.
    2. ▶COMSUNER ELECTRONIC: Optical Network Terminal-ONT, Femtocell, Smart Home, Smart TV-OTT.
    3. ▶TRANSPORTATION Infotainment:Infotaiment, Driving Assistance System-ADAS, Cameras, Battery Management System-BMS, Radar, Body Control.
    4. ▶INDUSTRY :Single Pair Ethernet(SPE), Automation, Industrial Communication, Safety Control.
    5. ▶MEDICAL:Infusion Mercury-Infusion Pump, Medical Imaging-Imaging, Monitor, Nuclear Magnetic Resonance.network transformer application
