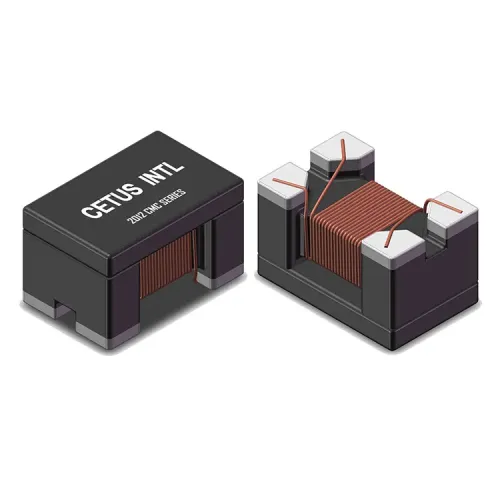

New Chip Pulse Transformer

Item No.: CLCA2012900TA
Pulse transformer? Chip inductors? Cetus launches new product-New Chip Pulse Transformer.
  • DCR:
    0.35
  • Rated Voltage:
    50
  • Rated Current:
    300
  • Withstanding Voltage:
    125
  • Insulation Resistance:
    10
  • Temperature:
    -40 to 85
Add to Inquiry
Download
Description Application
Description
COMMON MODE CHIP INDUCTORS
2012(0805)-SERIES
Features And Benefits
Large Range of Common Mode Impedance to Fit With Signal And Noise Level
Suppression of Common Mode Noise Without Attenuating The Signal
High-Quality Product That Uses Auto Winding
Available in 2012(0805) Size
RoHS Compliant
Operating Temperature: -40 °C Up To +85 °C
New Chip Pulse Transformer RoHS COMPLIANT & REACH COMPLIANT

Electrical Specifications @ 25°C

Part
Number

Common Mode Impedance 100MHz (Ω Typ)

DC Resistance
(Ω MAX)

Rated Voltage
(Vdc)

Rated Current
(mA MAX)

Withstanding Voltage
(Vdc)

Insulation Resistance
(MΩ MIN)

CLCA2012
900TA

90

0.35

50

300

125

10

CLCA2012
181TA

180

0.35

50

300

125

10

CLCA2012
261TA

260

0.4

50

300

125

10

CLCA2012
381TA

380

0.45

50

300

125

10

CLCA2012
801TA

800

0.88

50

300

125

10

CLCA2012
102TA

1000

1.3

50

300

125

10

CLCA2012
122TA

1200

1.5

50

300

125

10


Mechanical&Schematics

New Chip Pulse Transformer-Mechanical&Schematics

Impedance VS. Frequency
New Chip Pulse Transformer-Impedance VS. Frequency
Application
The New Chip Pulse Transformer use H & I structure and fully automated production mode, breaking through the traditional design scheme of circular wound transformers and inductors, and achieving mass production and full process automated production. The product complies with the EU RoHS2.0 specification and is compatible with products from major global PHY chip brand suppliers. The 100/1000/2.5G/5G/10GBASE-T New Chip Pulse Transformer meets the relevant standards of IEEE802.3 wired local area networks. Small size, high voltage resistance, compatibility with wide temperature performance, and low-cost product advantages are widely used in fields such as network communication and consumer electronics.

Product Application And Principle
New Chip Pulse Transformer-Product ApplicationNew Chip Pulse Transformer PrincipleChip Lan Family
