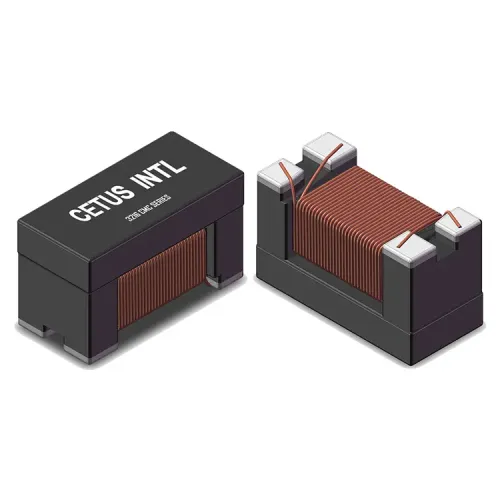

Chip Lan Transformer- Uses Auto Winding

Item No.: CLCA3216200MA
Cetus' new product - Chip Lan Transformer, uses auto winding. Cetus is always committed to producing high quality products!
  • DCR:
    1.00
  • Rated Voltage:
    50
  • Rated Current:
    200
  • Withstanding Voltage:
    125
  • Insulation Resistance:
    10
  • Temperature:
    -40 to 85
Add to Inquiry
Download
Description Application
Description
COMMON MODE CHIP INDUCTORS
3216(1206)-SERIES

Features And Benefits
Large Range of Common Mode Impedance to Fit With Signal And Noise Level
Suppression of Common Mode Noise Without Attenuating The Signal
High-Quality Product That Uses Auto Winding
Available in 3216(1206) Size
RoHS Compliant
Operating Temperature: -40 °C Up To +85 °C
Chip Lan Transformer- Uses Auto Winding RoHS COMPLIANT & REACH COMPLIANT


Electrical Specifications @ 25°C

Part
Number

Inductance 100KHz/0.1V
(μH)Min

DC Resistance
 (Ω)Max

Rated Current
(mA)

Rated Volt
 (VDC)

Withstand Volt
 (VDC) Max

Insulation Resistance
(MΩ Min)

CLCA3216
200MA

20

1.00

200

50

125

10

CLCA3216
600MA

60

1.70

200

50

125

10


Mechanical&Schematics

Chip Lan Transformer- Uses Auto Winding Mechanical&Schematics

Impedance VS. Frequency
Chip Lan Transformer- Uses Auto Winding Impedance VS. Frequency
Application
The New Chip Pulse Transformer use H & I structure and fully automated production mode, breaking through the traditional design scheme of circular wound transformers and inductors, and achieving mass production and full process automated production. The product complies with the EU RoHS2.0 specification and is compatible with products from major global PHY chip brand suppliers. The 100/1000/2.5G/5G/10GBASE-T New Chip Pulse Transformer meets the relevant standards of IEEE802.3 wired local area networks. Small size, high voltage resistance, compatibility with wide temperature performance, and low-cost product advantages are widely used in fields such as network communication and consumer electronics.

Product Application And Principle
New Chip Pulse Transformer-Product ApplicationNew Chip Pulse Transformer PrincipleChip Lan Family
