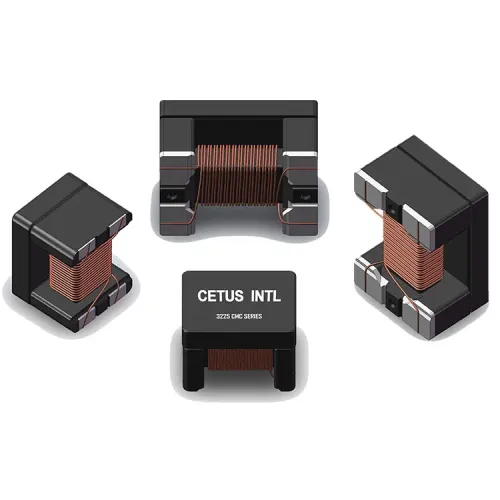

Chip Choke For CAN-FD

Item No.: CACB3225110U0
CETUS Has Expanded Its Chip Choke Product Range For Automotive CAN/CAN-FD/A2B And 100BASE-T1/1000BASE-T1 Ethernet Applications.
  • Rated Current:
    300
  • RDC:
    0.4
  • Temperature:
    – 40°C to +125°C
  • Isolation Resistance:
    10
Add to Inquiry
Download
Description Application
Description
AUTOMOTIVE
IVN(IN-VEHICLE NETWORK)-CAN/CAN-FD/ETHERNET USE CHIP CHOKES
Features And Benefits
• Meets IEEE 802.3 Single Twisted Pair Standards
• Meets AEC-Q200 Requirement
• PPAP Documentation Support
• Tested With Leading PHY Partners
• Operating Temperature: – 40°C to +125°C
• 100Base-T1, 1000Base-T1 & PoDL Products
• IATF16949 Capable

AEC-Q200&IATF16949&RoHS COMPLIANT & REACH COMPLIANT

CAN/CAN-FD 3225 Series Electrical Specifications @ 25°C

Part Number

Common Mode
Impedance (10MHz)

Inductance (μH) +50/–30%

RDC (Ω)Max

Leakage Inductance (nH) Typ

Isolation Resistance (MΩ) Min

Rated Current (mA) Max

Rated Voltage (V) Max

(Ω)Min

(Ω)Typ

CACB3225110U0

300

550

11

0.4

50

10

300

80

CACB3225220U0

500

1100

22

0.5

70

10

250

80

CACB3225510U0

1000

2600

51

0.7

130

10

200

80

ACCB3225101U0

2200

5100

100

1.5

180

10

150

80


Impedance VS. Frequency
Chip Choke For CAN-FD Impedance VS. Frequency
Mechanical & Schematics
Chip Choke For CAN-FD Mechanical & Schematics
Application
Electronics Inside The Car Communicate With Each Other Over In-Vehicle-Network. Reliable Data Transfer At Automotive Harsh Environment Like Noise And Temperature. CETUS Has Expanded Its Chip Choke Product Range For Automotive CAN/CAN-FD/A2B And 100BASE-T1/1000BASE-T1 Ethernet Applications. They Combine Small Size With The Same Excellent Suppression Performance Needed For Automotive Ethernet And Transportation Solutions Using CAN, CAN-FD, A2B And IsoSPI. JWD’s Parts Are Designed To Operate From -40°C Up To +125°C, Have High Reliability, High Volume Manufac-Turing, Long Term Manufacturing Support, And Meet AEC-Q200 Requirements.

Application
 • 100Base-T1 Automotive Ethernet
 • 1000Base-T1 Automotive Ethernet
 • CAN, CAN-FD
 • Flex Ray And IsoSPI
 • A2B
