General
This specification is applicable to electronic communication equipment, POE power supply, and network transmission
Compliant standards: IEEE 802.3af and 802.3at
The PSE management chip used in this product is mircosemi 69101
Use PD and network cables that meet the standards; otherwise, the power output of the device will be affected
|
Part Number |
Ports |
Speed |
Output Rated power |
Output Rated Current |
Output Voltage |
Input Rated Voltage |
Input Rated Frequency |
Operating Temperature |
Regulatory Standards |
|
CET301-ZXX5300625QY |
1 RJ45 |
1000M |
31.8W |
0.6A |
53V |
100-240V |
50/60HZ |
0-40 ℃ |
CE & CCC IEEE 802.3af & 802.3at |
Output Voltage and Current
|
Output Voltage |
Rated Output |
Line |
Load |
Ripple Noise |
Remark |
|
48V |
0.6A |
±5% |
±5% |
≤300mVpp |
≤300mVpp |
Remark
Measurement is done by 20MHz bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a 10uF electrolysis capacitor.
Power Supply Frame
¨Wall mount
ýDesk-top
¨Open frame
¨Other
Output Connector
RJ45 +(1,2)(4,5)pins -(3,6)(7,8)pins
DC Wire Specification
Wire Length：/
Input Specification
Input Voltage：90-264Vac
Rated Voltage：100-240Vac.
Input Frequency：47-63Hz.
Rated Frequency：50/60Hz.
Output rated power：31.8W
Regulatory Standards
|
Country |
Standard |
State |
Mark |
|
China/CCC |
GB 17625.1-2022 |
Meet |
|
|
CE |
EN 62368-1 |
Meet |
|

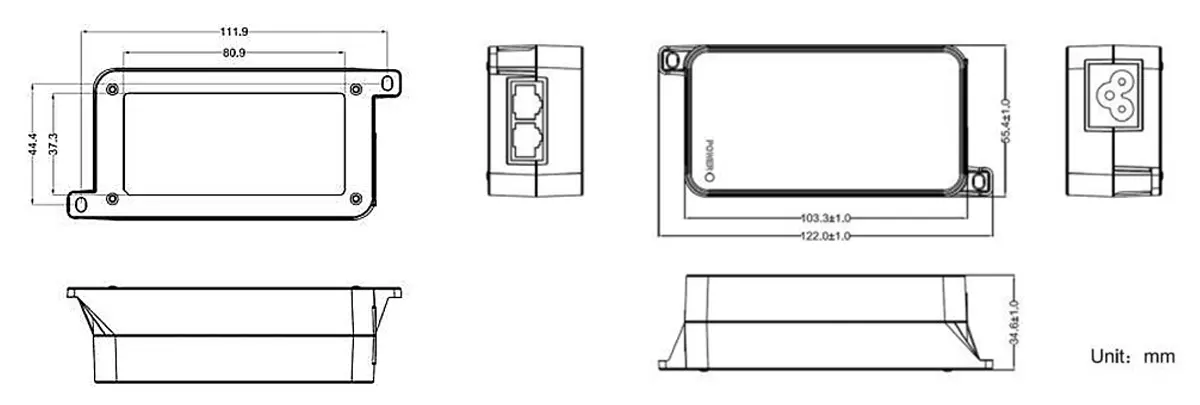

Mechanical Dimensions
Network Port Connection Mode
