52V0.3A Single Port Ethernet Power Adapter 1000M

Item No.: CET151-ZXX5200300QN
CETUS As one of the professional POE adapter Manufacturers, you can rest assured to buy POE adapter products from our factory, we will provide you with the best after-sales service and timely delivery.
  • Ports:
    1 RJ45
  • Speed:
    1000M
  • Output Rated power:
    15.6W
  • Output Rated Current:
    0.3A
  • Output Voltage:
    52V
  • Input Rated Voltage:
    100-240V
  • Input Rated Frequency:
    50/60HZ
  • Operating Temperature:
    0-40 ℃
  • Regulatory Standards:
    CE & CCC
Add to Inquiry
Description
Description

General

This specification is applicable to electronic communication equipment, POE power supply, and network transmission.

Part Number

Ports

Speed

Output Rated
power

Output Rated
Current

Output Voltage

Input Rated
Voltage

Input Rated
Frequency

Operating
Temperature

Regulatory
Standards

CET151-
ZXX5200300QN

1 RJ45

1000M

15.6W

0.3A

52V

100-240V

50/60HZ

0-40 ℃

CE & CCC


Output Voltage and Current

Output Voltage

Rated Output Current

Line Regulation

Load Regulation

Ripple Noise

Remark

52V
49.4~54.6V

0.3A

±5%

±5%

≤300mVpp

≤300mVpp
@AC100-240V

Measurement is done by 20MHz bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a 10uF electrolysis capacitor.

Power Supply Frame

¨Wall mount

ýDesk-top

¨Open frame

¨Other

Output Connector

RJ45 +(1,2)(4,5)pins -(3,6)(7,8)pins


DC Wire Specification

Wire Length/



Input Specification

Input Voltage90-264Vac

Rated Voltage100-240Vac.

Input Frequency47-63Hz.

Rated Frequency50/60Hz.

Output rated power15.6W



Regulatory Standards

Country

Standard

State

Mark

China/CCC

GB 17625.1-2022
GB 4943.1-2022
GB/T 9254.1-2021

Meet



CE

EN 62368-1

Meet


Mechanical Dimensions

 52V0.3A Single Port Ethernet Power Adapter 1000M Mechanical Dimensions



Network Port Connection Mode

52V0.3A Single Port Ethernet Power Adapter 1000M Network Port Connection Mode
Product Application
52V0.3A Single Port Ethernet Power Adapter 1000M Product application

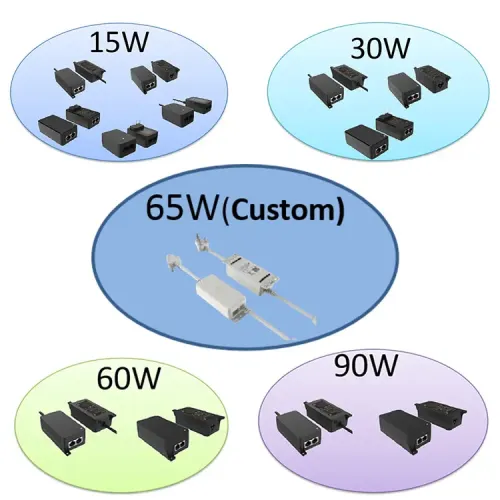

Multiple Power Options Available
52V0.3A Single Port Ethernet Power Adapter 1000M Multiple power options available

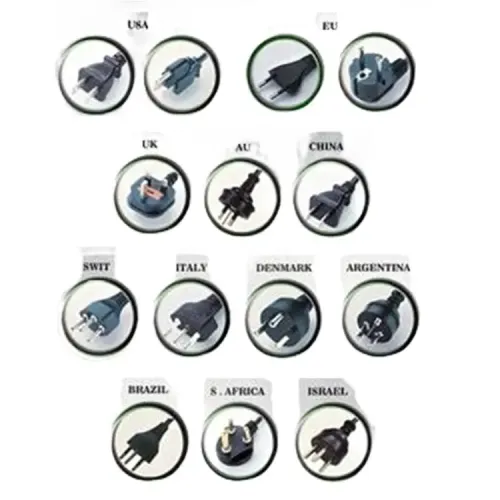

Plug Type Customizable
52V0.3A Single Port Ethernet Power Adapter 1000M Plug type customizable
