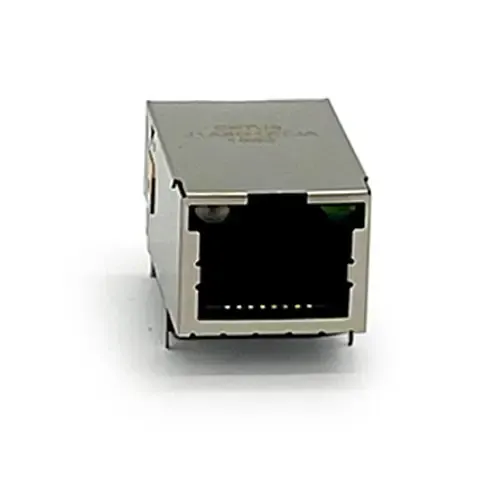

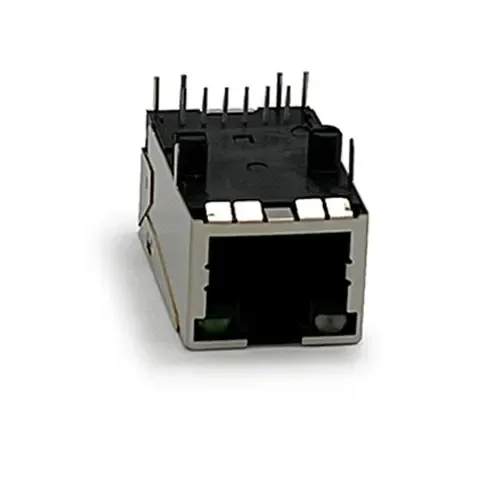

1X1PORT TAP DOWN RJ45 CONNECTOR SERIES 10/100&1000BASE-T
Feature:
◆RoHS peak wave solder temperature rating 260℃.
◆Suitable for CAT5&6 Fast Ethernet Cable Or Better UTP.
◆Compliant With IEEE 802.3 Standard.
◆350 uH Minimum OCL With 8mA DC Bias Current.
Description:
We are a Chinese RJ45 connector manufacturer,specializing in producing the ethernet RJ45 Connector for more than 15 years.The PN "J1B1211CAB" connector suitable for CAT5&6 fast ethernet cable or better UTP.We have ISO 9001:2015 and IATF16949certificate.

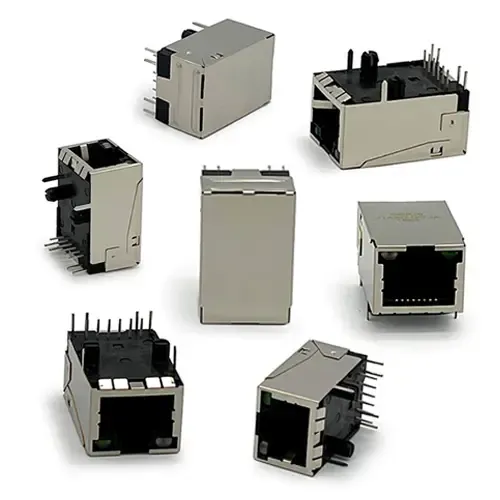

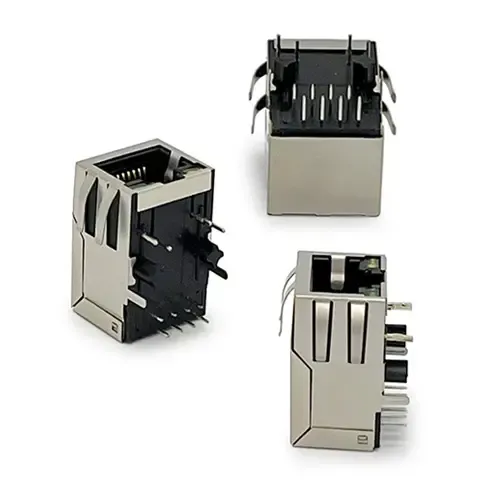

Many options are available for an RJ45 which include right angle, 45° or vertical, and with tab up or tab down mating orientation. Through hole or surface mounted (SMD) contact tail types are available. Housings can be shielded or non-shielded. RJ45 jacks (sockets) can be supplied with or without LEDs.
We are the top RJ45 modular jack manufacturer from China, we mainly produce single-port, multi-port RJ45 jacks with or without integrated magnetics.OEM/ODM Sevices.Global Wholesalers.
Application:
5 major market categories Network Communication, Consumer electronics, Transportation, Industry, Medical.
Part Number |
Turn Ration (±) |
Number Of Ports |
Speed |
PoE Rating |
Operating Temperature |
EMI |
LED |
UP/DOWN |
Hi-pot |
J1B1211CAB |
1:1 |
1PORT |
10/100BASE-T |
No |
-40 to 85℃ |
Yes |
G/Y |
DOWN |
1500 |
