XXX5C4XX Series
10/100 Base-TX Quad Port Magnetic Modules DIP
◆Compliant with IEEE 802.3 standard for 10/100Base-TX.
◆Storage temperature range: -40℃ to +85℃.
◆RoHS compliant.
◆WE are a professional network transformers manufacturer, you can rest assured to buy network transformers from our factory . The PN LZZ5C4CA is 10Base T LAN transformers used in consumer electronics.
|
CETUS PN |
Application-Lan |
Number Of Ports |
Package |
PIN No. |
Speed |
Package SIZE(mm) |
|
LZZ5C4CA |
X'FMR/CMC |
Quad |
DIP |
40 |
10/100 BASE-T |
37.8*7.8*11.2 |
|
Electrical Specifications @ 25°C |
|||||||||||
|
Part Number |
OCL(uH) |
Insertion Loss |
Return Loss |
Cross talk |
CMRR |
Isolation Hipot(V) |
PoE Rating |
Operating Temperature(°C) |
|||
|
Min |
Max |
Min |
Min |
Min |
Min |
||||||
|
100kHz,0.1V 8mA DC BIAS |
1-100MHz |
1-30MHz |
30-60MHz |
60-80MHz |
1-100MHz |
1-100MHz |
1mA,60s |
||||
|
LZZ5C4CA |
350 |
-1.1 |
-18 |
-14.4 |
-12 |
-30 |
-30 |
1500 |
NON-PoE |
0 to 70 |
|
|
LZZ5C4CB |
350 |
-1.1 |
-18 |
-14.4 |
-12 |
-30 |
-30 |
1500 |
NON-PoE |
0 to 70 |
|
|

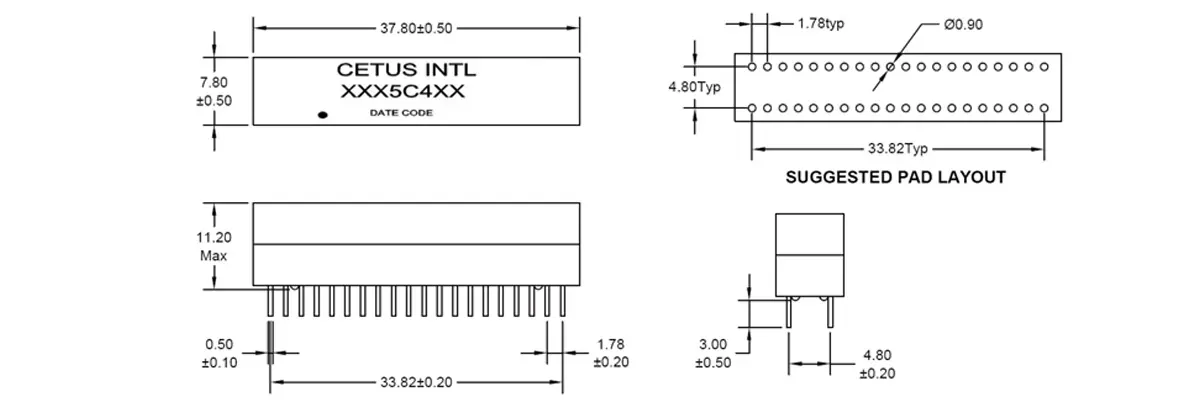

Mechanical |
|

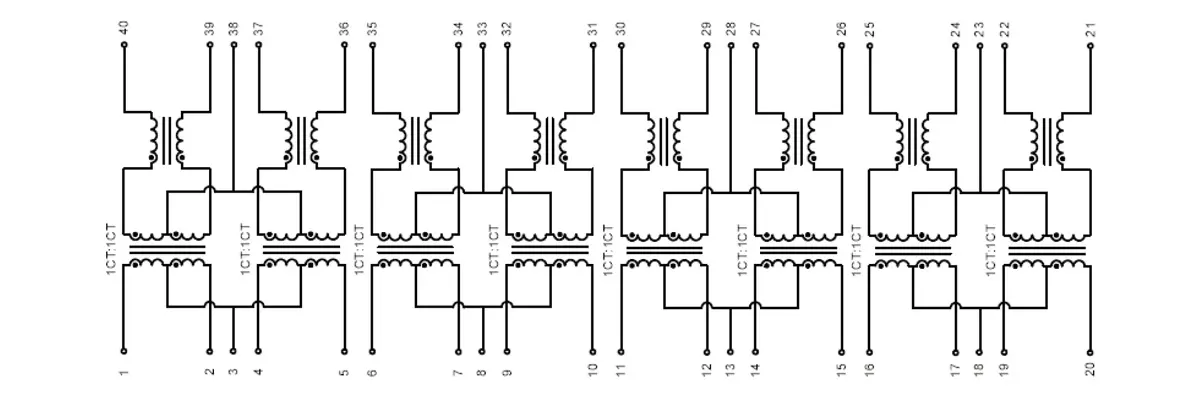

Schematics-LZZ5C4CA |
