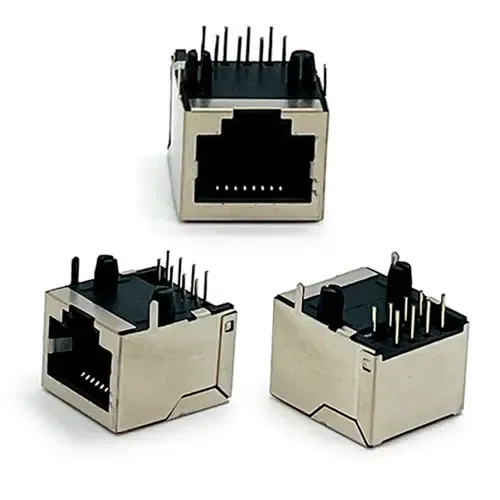

10/100 base-T Connector RJ45

Item No.: J1A101ZCC
Manufacturer of standard and custom modular jack RJ45 connectors for Ethernet networking applications. Shield, right or 45 degree angle, vertical, through-hole, surface mounted, tab-up, tab-down and LED options are provided.
  • Turn Ration (±):
    1:1
  • Ports:
    1PORT
  • Speed:
    10/100 BASE-T
  • PoE Rating:
    No
  • Temperature (℃):
    0 to 70℃
  • EMI Fingers:
    No
  • LED (L/R):
    No
  • UP/DOWN:
    DOWN
  • Hi-pot (Vrms MIN):
    1500
Add to Inquiry
Description Application
Description

1X1PORT TAP DOWN RJ45 CONNECTOR SERIES 10/100&1000BASE-T

Feature:

◆RoHS peak wave solder temperature rating 260℃.

◆Suitable for CAT5&6 Fast Ethernet Cable Or Better UTP.

◆Compliant With IEEE 802.3 Standard.
◆350 uH Minimum OCL With 8mA DC Bias Current.

Description:
Manufacturer of standard and custom modular jack RJ45 connectors for Ethernet networking applications. Shield, right or 45 degree angle, vertical, through-hole, surface mounted, tab-up, tab-down and LED options are provided.



Part Number

Turn Ration (±)

Number Of Ports

Speed

PoE Rating

Operating Temperature
(°C)

EMI
Fingers

LED
(L/R)

UP/DOWN

Hi-pot
(Vrms MIN)

J1A101ZCC

1:1

1PORT

10/100BASE-T

No

0 to 70

No

No

DOWN

1500



Mechanical


10/100 base-T Connector RJ45

Schematics


10/100 base-T Connector RJ45
Application
Market Application

5 major market categories Network Communication, Consumer electronics, Transportation, Industry, Medical.
    1. ▶NETWORK COMMUNICATION:Switch, Router, STB, Gatewa1 and Base Stations.
    2. ▶COMSUNER ELECTRONIC: Optical Network Terminal-ONT, Femtocell, Smart Home, Smart TV-OTT.
    3. ▶TRANSPORTATION Infotainment:Infotaiment, Driving Assistance System-ADAS, Cameras, Battery Management System-BMS, Radar, Body Control.
    4. ▶INDUSTRY :Single Pair Ethernet(SPE), Automation, Industrial Communication, Safety Control.
    5. ▶MEDICAL:Infusion Mercury-Infusion Pump, Medical Imaging-Imaging, Monitor, Nuclear Magnetic Resonance.RJ45 Connector Apllication
