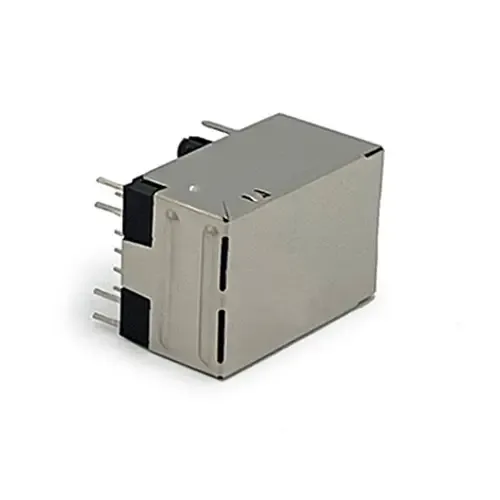

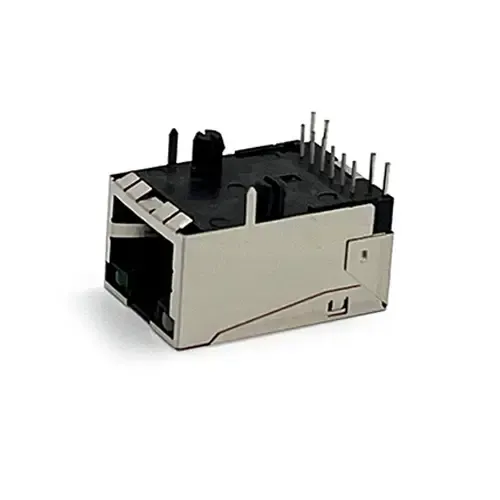

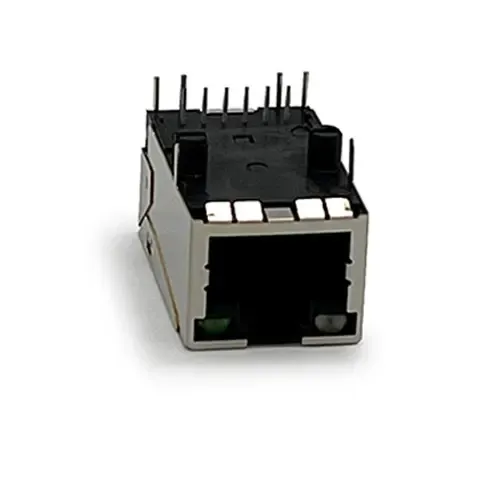

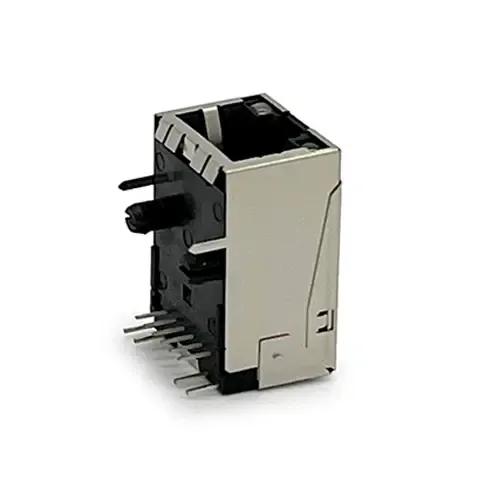

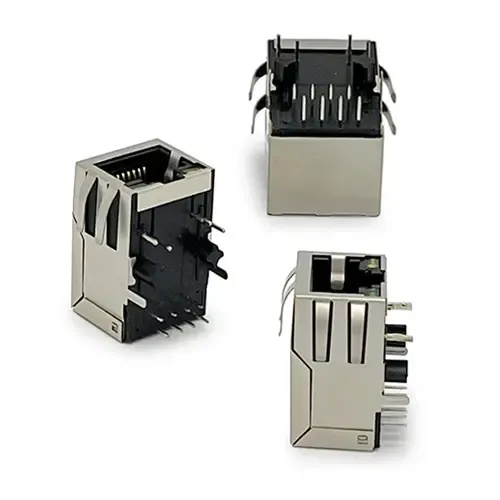

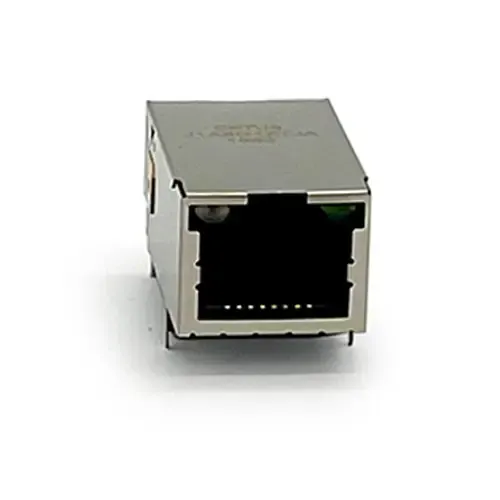

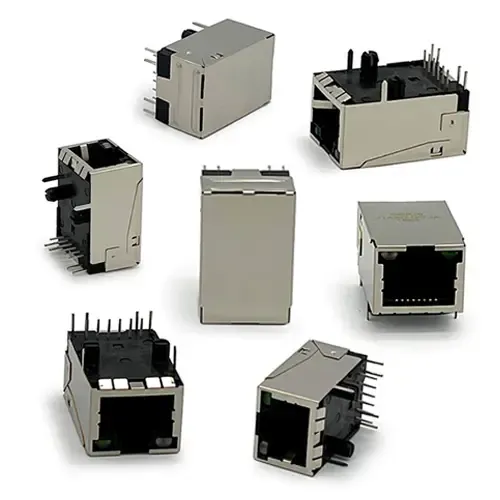

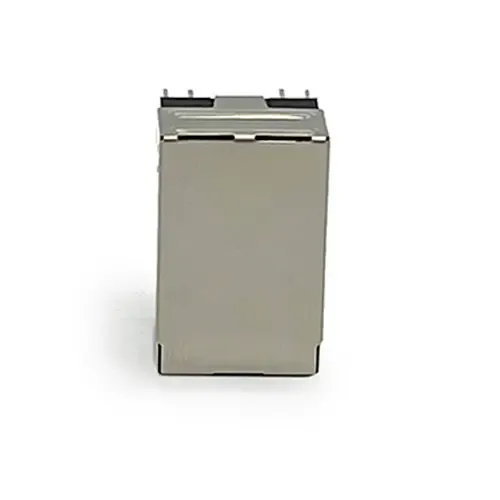

Single Port RJ45 Modular Connector of CETUS

Item No.: J1B213ZRNA
15+ years of R&D experience RJ45 Connector,LAN transformer Manufacturer in China.
OEM/ODM Sevices.Global Wholesalers.Factory Direct & Fast Shipping.100% quality assurance.
Certificate:IATF 16949、ISO 9001、ISO 14001、ISO 45001、IECQ、CEPREI.
  • Turn Ration (±):
    1:1
  • Ports:
    1PORT
  • Speed:
    100/1000BASE-T
  • PoE Rating:
    No
  • Temperature (℃):
    0 to 70℃
  • EMI Fingers:
    Yes
  • LED (L/R):
    Y/G
  • UP/DOWN:
    DOWN
  • Hi-pot (Vrms MIN):
    1500
Add to Inquiry
Description
Description

1X1PORT TAP DOWN RJ45 CONNECTOR SERIES 10/100&1000BASE-T

Feature:

◆RoHS peak wave solder temperature rating 260℃.

◆Suitable for CAT5&6 Fast Ethernet Cable Or Better UTP.

◆Compliant With IEEE 802.3 Standard.
◆350 uH Minimum OCL With 8mA DC Bias Current.

Description:

CETUS connectors are available in many different styles and footprints including RJ45 magjacks plugsrj45 modular connector Jack and couplers for both commercial and industrial installations. The portfolio covers Category 5E, Category 6, and Category 6A for both shielded and unshielded applications. Reliability, high performance and ease of termination is designed into every component. Combine with  Ethernet cables for end-to-end system performance.

Many options are available for an RJ45 which include right angle, 45° or vertical, and with tab up or tab down mating orientation. Through hole or surface mounted (SMD) contact tail types are available. Housings can be shielded or non-shielded. RJ45 jacks (sockets) can be supplied with or without LEDs.


We are the top RJ45 modular jack connector manufacturer from China, we mainly produce single-port, multi-port RJ45 jacks with or without integrated magnetics.OEM/ODM Sevices.Global Wholesalers.


Application:
5 major market categories Network Communication, Consumer electronics, Transportation, Industry, Medical.

◆NETWORK COMMUNICATION:Switch, Router, STB, Gatewa1 and Base Stations.
◆COMSUNER ELECTRONIC: Optical Network Terminal-ONT, Femtocell, Smart Home, Smart TV-OTT.
◆TRANSPORTATION Infotainment:Infotaiment, Driving Assistance System-ADAS, Cameras, Battery Management System-BMS, Radar, Body Control.
◆INDUSTRY :Single Pair Ethernet(SPE), Automation, Industrial Communication, Safety Control.
◆MEDICAL:Infusion Mercury-Infusion Pump, Medical Imaging-Imaging, Monitor, Nuclear Magnetic Resonance.



Part Number

Turn Ration (±)

Number Of Ports

Speed

PoE Rating

Operating Temperature
(°C)

EMI
Fingers

LED
(L/R)

UP/DOWN

Hi-pot
(Vrms MIN)

J1B213ZRNA

1:1

1PORT

100/1000BASE-T

No

0 to 70℃

Yes

Y/G

DOWN

1500



Mechanical


Single Port RJ45 Modular Connector of CETUS

Schematics


Single Port RJ45 Modular Connector of CETUS
