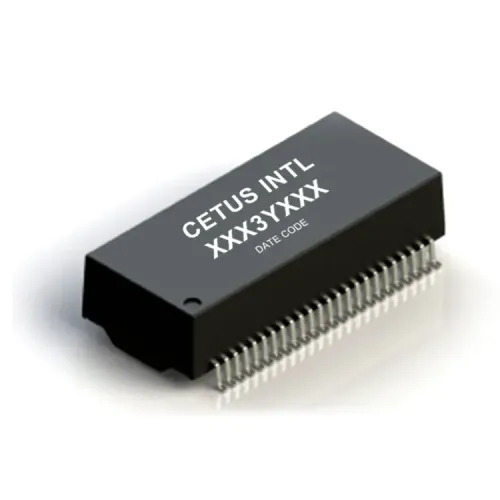

350(14mA DC BIAS) Dual Port Magnetic Modules SMD

CETUS PN

Application-Lan

Number Of Ports

Package

PIN No.

Speed

Package SIZE(mm)

PZZ3Y2ZE-D

X'FMR/CMC

Dual

SMD

48

100/1000 BASE-T

27.8*12.2*7.5

Electrical Specifications @ 25°C

Part Number

OCL(uH)

Insertion Loss
(dB)

Return Loss
(dB)

Cross talk
(dB)

CMRR
(dB)

Isolation Hipot(V)

PoE Rating

Operating Temperature
(°C)

Min

Max

Min

Min

Min

Min

100kHz,0.1V

0.5-1MHz

1-125MHz

1-40MHz

40-100MHz

1-100MHz

1-100MHz

1mA,60s

PZZ3Y2ZE-D

350(14mA DC BIAS)

-1.2

-0.2-0.002*F⋀1.4

-16

-10+20*Log(f/80)

-30

-30

1500

4PPoE 90W

0 to 70

PZ13Y2JA

350(8mA DC BIAS)

-1.2

-0.2-0.002*F⋀1.4

-16

-10+20*Log(f/80)

-30

-30

1500

PoE 15W

-40 to 85

LCZ3Y2ZB

350(8mA DC BIAS)

-1.2

-0.2-0.002*F⋀1.4

-16

-10+20*Log(f/80)

-30

-30

1500

PoE 15W

0 to 70

PZ13Y2ZB-D

350(14mA DC BIAS)

-1.2

-0.2-0.002*F⋀1.4

-16

-10+20*Log(f/80)

-30

-30

1500

4PPoE 90W

-40 to 85
