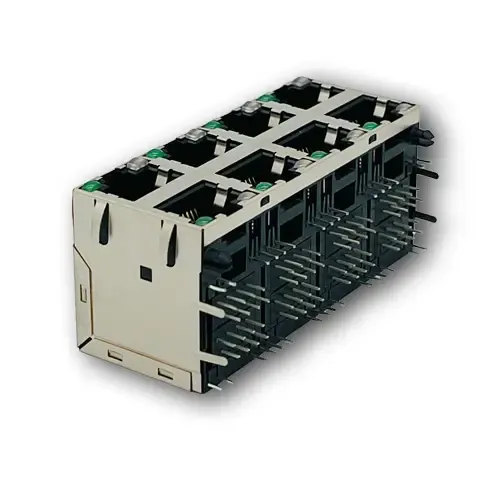

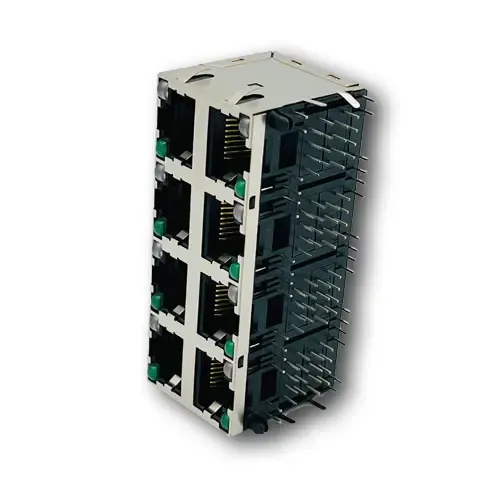

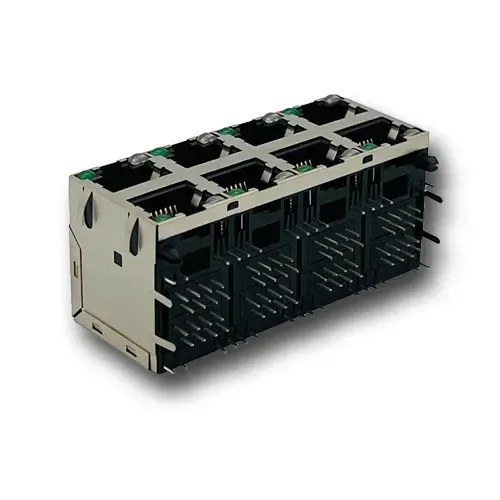

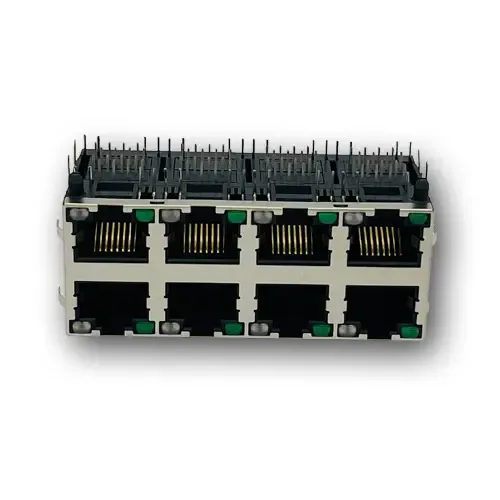

10 100 1000 Base TX RJ45 Network Connector

Item No.: JDKF90ZNEA
Manufacturer of RJ45 connectors. Most items available in stock. REACH and RoHS compliant.Available in different design models and multiple speeds such as 10/100/1000 BASE-T.OEM/ODM Sevices.Global Wholesalers.
  • Turn Ration (±):
    1:1
  • Ports:
    2X4PORT
  • Speed:
    100/1000 BASE-T
  • PoE Rating:
    No
  • Temperature (℃):
    0 to 70℃
  • EMI Fingers:
    Yes
  • LED (L/R):
    O+G/O+G
  • UP/DOWN:
    /
  • Hi-pot (Vrms MIN):
    1500
Add to Inquiry
Description
Description

2XN PORT  RJ45 CONNECTOR SERIES 10/100&1000 BASE-T

Feature:

◆RoHS peak wave solder temperature rating 260℃.

◆Suitable for CAT5&6 Fast Ethernet Cable Or Better UTP.

◆Compliant With IEEE 802.3 Standard.
◆350 uH Minimum OCL With 8mA DC Bias Current.

Description:
Manufacturer of RJ45 connectors. Most items available in stock. REACH and RoHS compliant.Available in different design models and multiple speeds such as 10/100/1000 BASE-T.OEM/ODM Sevices.Global Wholesalers.

Application:
5 major market categories Network Communication, Consumer electronics, Transportation, Industry, Medical.

◆NETWORK COMMUNICATION:Switch, Router, STB, Gatewa1 and Base Stations.
◆COMSUNER ELECTRONIC: Optical Network Terminal-ONT, Femtocell, Smart Home, Smart TV-OTT.
◆TRANSPORTATION Infotainment:Infotaiment, Driving Assistance System-ADAS, Cameras, Battery Management System-BMS, Radar, Body Control.
◆INDUSTRY :Single Pair Ethernet(SPE), Automation, Industrial Communication, Safety Control.
◆MEDICAL:Infusion Mercury-Infusion Pump, Medical Imaging-Imaging, Monitor, Nuclear Magnetic Resonance.

Part Number

Turn Ration (±)

Number Of Ports

Speed

PoE Rating

Operating Temperature
(°C)

EMI
Fingers

LED
(L/R)

UP/DOWN

Hi-pot
(Vrms MIN)

JDKF90ZNEA

1:1

2X4PORT

100/1000 BASE-T

No

0 to 70℃

Yes

O+G/O+G

/

1500



Mechanical


10 100 1000 Base TX RJ45 Network Connector

Schematics


10 100 1000 Base TX RJ45 Network Connector
